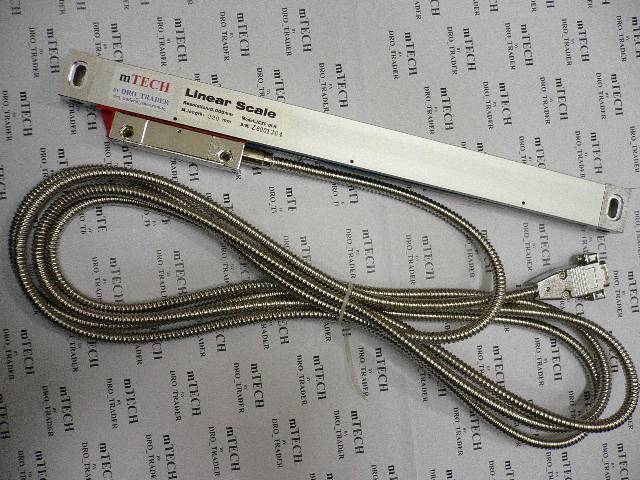

Type "F" - Slim Profile

The type "F" Slim profile scales are normally used in area where space is a constraint or in the Cross-travel of a Lathe machine.



Glass Scales are available in these travel/measuring length:
Metric: 120, 170, 220, 270, 320, 370mm.
Inches: 4.7, 6.7, 8.7, 10.6, 12.6, 14.6inches.



FEATURES OF THE HIGH PRECISION GLASS SCALE ??
~High Precision Etched glass
~Single layer rubber sealing lips, due to space limitation
~Resolution : 5um (0.005mm).0002 inch  or 1um (0.001mm) .00004 inch
~Signal : TTL SQUARE WAVE
~Grating pitch: 0.02mm (5um scale) or 0.004mm (1um scale)
~Accuracy: 0.005 mm or 0.0002" (at 20 deg C)
~Single Reference marks
~Response Speed: 60m/min or 40ins/sec
~Cable length: Armoured 3 Meter (about 9 feet)

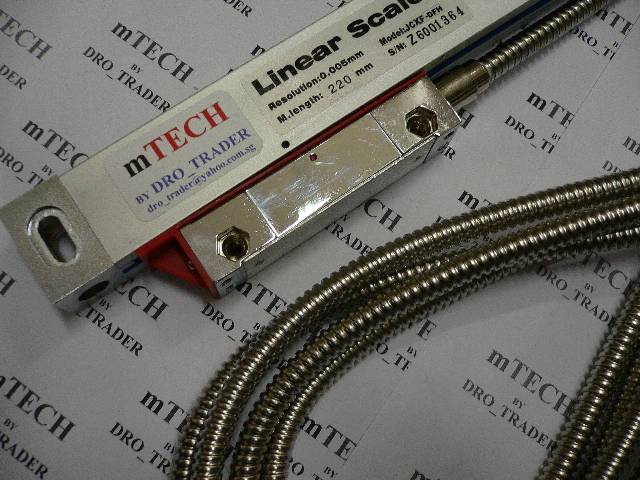

mTECH High Precision Glass scale comes with matching protective cover


L0 =  the travelling / measuring length
