We are
selling you the complete set.

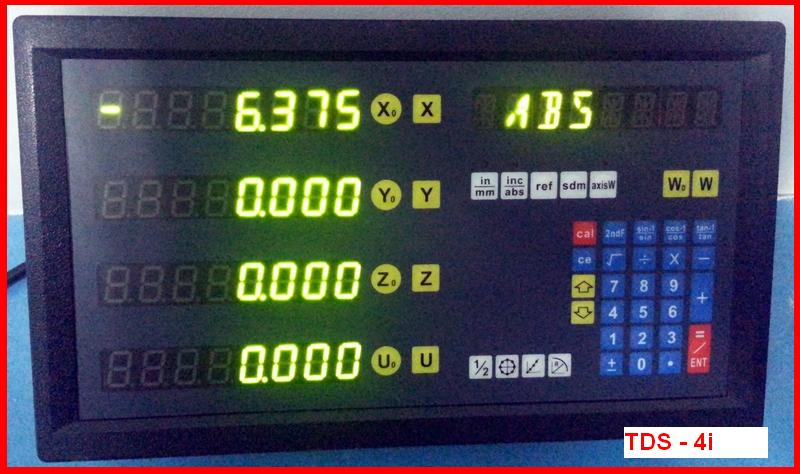

TDS-4i (4 Axis Milling DRO) with
4 Precision
Glass Scale with protective cover and all the necessary mounting accessories.
Everything is
included, so you do not need to hunt down anything from your hardware store
!!
Most customer want to install this 4 axis DRO on their milling machine for
X, Y, Knee-Z and Quil-Z axis |
|
 |
This
TDS-4i DRO is caters for inch (4 decimal places 0.0005") and mm (3 decimal
places 0.005) .
Speciallu in inch, it is make for easy reading
as the display in inches is
4 decimal
places.

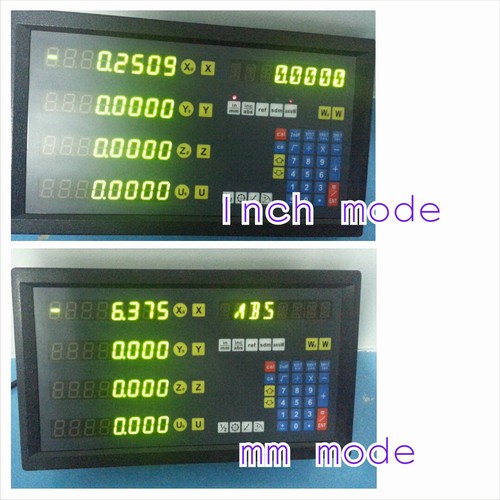

e.g. the display will show (4 decimal places) "0.1234 inch"
Some of competitors DRO, will show
(5 decimal places) "0.12345",
which is very
distracting and unfriendly to the eyes.
MM/Inch reading can be toggle by just pressing a button
|
|
|
4 piece of High Quality Precision Glass
Linear Scale
(Photo only show 2 pieces, but you will get 4 scales)Each individual Scale
are checked by Laser during production to ensure they meet the industry
standard.
They also comes with their corresponding
coolant protective cover |
|
 |
Our TDS Scales comes with
Double-Layer Rubber Sealing lips for double the protection against coolant
and chips.
(Other scales only
has Single-Layer Rubber Sealing, so their life spans are greatly shorten)
How we know ? Because we install DRO system and linear scale everyday for
our customer.
We are unlike other "Traders Only" Seller, whom, will not be able to give
you the correct advice and only provide you with the cheapest.
We
choose the BEST, so you Worry LESS !!
|
|
|
Scale installation manual in
English. Showing the method to
install the Precision Glass Linear Scale. |
|
 |
Complete sets of screws, washer and spring washer.
We make sure you have
enough. Even enough for you to drop a few screws and make them disappear.
(You know what I am talking about... It always happen and it always
seems that the floor has eaten them.)
We do not want you
to waste time to search for missing screws. We want you to have an easy and
carefree installation.
I believe you are
happy with our thinking !! |
|
 |
Shim plates for adjusting the scales alignment and
thickness
This is critical
for getting the correct alignment, and we make sure you have these with
different sizing, so it match any alignment problem.
Do our competitors
offer them ?? It sets you thinking !! |
|
 |
2x Mounting blocks
For easy installation on uneven surface...
Most of the time the Y-axis on the Milling machine will not be smooth.
So either, you make
one yourself, or you buy from TheDROStore, whom had already prepare them for
you.
A little thoughts goes
a long way !! |
|
 |
Cables need to be tidy, that's
why we are providing you with cable clips and
cable tie to manage the cables,
It must be tidy and not hook on to
something and break the cable.
No bother to check with our competitors
anymore... we give you best value and ease the pain of installing the DRO
system.
We can see you
smiling from miles away now !! Cheers ! |
|
 |
6x
solid pieces of mounting bracket with the slots and screw holes tapped.
(Sample photo only show 4 pieces, but you get 6 pieces)
You need these to get
the correct mounting position of the Reader Head (Sensor Head).
I saw some seller in eBay provide only 1
piece of bracket. I can only say good luck to their buyer, and hope their
machine is mould to suit their 1 piece of bracket.
You get good quality
and good service, plus our in-depth knowledge of DRO installation !! |
|
 |
See what you can do with 4 brackets.
It allows you to
mount, even in difficult conditions. |
List of items:
1) DRO (1 set)
- TDS-4i
- Protective Cover
- Power Cable
- Mounting Arm and screws
- English Operation Manual
2) Precision Glass Scales (4 set)
- Choose the preferred travel length:
Metric: 50, 120, 170, 220, 270, 320, 370,
420, 470, 520, 620, 750, 820, 920mm.
Inches: 2, 4.7, 6.7, 8.7, 10.6, 12.6, 14.6, 16.5, 18.5, 20.5, 24.5, 29.5, 32.3,
36.2inches.
We also make scales up to
120inch, longer scales at additional cost.
(Physical
Length/Overall Length is 142 mm (5.6") longer)
You can CHOOSE ANY 4 PIECE OF GLASS SCALE FROM THE ABOVE.
To know what
travel length scale will suits yout machine, you can visit my blog:
http://mtechdro.blogspot.com/2007/08/faq-what-scale-length-will-suit-my.html
Here are
some common scales for these standard machine:
| Mill Size |
Scale Travel |
Scale Overall Length |
| 8 x 36" |
12.6 x 30" |
18 x 35" |
| 9 x 42" |
14.6 x 30" |
20 x 35" |
| 9 x 49" |
14.6 x 36" |
20 x 41.8" |
| 10 x 54" |
16.5 x 40" |
22 x 45.6" |
| Lathe Size |
Scale Travel |
Scale Overall Length |
| 12 x 24" |
6.7 x 30" |
12 x 35" |
| 12 x 36" |
8.7 x 40" |
14 x 45.6" |
| 13 x 40" |
8.7 x 40" |
14 x 45.6" |
| 14 x 40" |
10.6 x 40" |
16 x 45.6" |
| 16 x 40" |
10.6 x 40" |
16 x 45.6" |
| 16 x 60" |
10.6 x 60" |
16 x 65.6" |
| 18 x 60" |
12.6 x 60" |
18 x 65.6" |
- 6 pieces of mounting bracket
- Protective cover
- 2xMounting blocks (for easy installation on uneven surface)
- Shim plates for adjusting the scales alignment
and thickness
- Cable clips and lots of mounting screws
- Scale installation manual
Technical Information:
TDS-4i Features
~4 LED 8 Segment display for X,Y,Z,U Axis
~1 LED display for information/help display
~On Board
Calculator
~Absolute/Incremental
~M/I: MM/Inches conversion
~X, Y, Z Quick-zero button
~200 work piece zero position memory
~1/2 function, Part Centering
~PCD, Bolt hole circle pattern
~Straight Line, hole pattern
~Linear error compensation function
~Rounding "R" function
~Power off memory
~Radius / Diameter Reading can be set via
parameter
Linear Precision Glass Scales Features
~High Precision Etched
glass
~Resolution : 5um (0.005mm).0002 inch
~Signal : TTL SQUARE WAVE
(9pin
SUB-D connector)
~Grating pitch: 0.02mm (50LP/min)
~Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
~Reference marks at interval of 50mm
~Response Speed: 60m/min or 40ins/sec
~Cable length: Armoured 3 Meter (about 9 feet)
THESE ARE HIGH QUALITY SCALES THAT HAVE BEEN CHECKED BY LASER !!!
Drawing of the Scales:
Slim
Scales (Model JCXF ) - Normally used for Lathe Cross-slide ( measure up to
370mm, 14.5")
Standard Scales (Model JCXE) - Used for Z-axis on Lathe and Milling machine
( measure up to 1020mm, 40.1")
Long Scales (Model JCXG) - Used for Big machine with extended length (
measure up to 3040mm, 120")
Warranty:-
~ 1 year
international warranty
Payment:-
~ Paypal is preferred.
~ Credit cards through Paypal.
~ Bank transfer
~ Telegraphic Transfer/Remittances
Delivery:-
~Door-to-Door By Air Parcel FEDEX
Shipping -FREE
~Shipping for
USA, CANADA, UK, AUSTRALIA, NEW ZEALAND
is FREE
US$125
( 9
to 11 Days)
~For Other location, please email me for shipping/handling cost.
OPTIONAL:
Why wait 9~14 working
days ? You can have your DRO fly to you in
2~5 working days. Get your DRO
faster,
with point-to-point tracking and hassle-free clearance.
JUST ADD USD20.
FREE ONLY for THIS Promotion !!!
Other countries, please email to check for
charges.
-----------------------------------------------------------------------------------
We are
so SURE you will like it
and improve your work efficiency and accuracy that we gladly
offer you 30 days NO QUESTIONS ASKED
return privilege.
This is a 100% refund. You are only responsible for shipping back the
package.
