mTECH 2 AXIS DRO LATHE PACKAGE
USD495 (usual USD599) + FREEBIES

BUY NOW, TO GET FREEBIES




FREE #1 - DRO installation Visual Guide Manual eBook
with 79 pages of photos of step-by-step guide, you will never go wrong.

Learn how the expert do it and learn the trick of the trade.
Install your DRO in 4 hours!!

We have both Installation manual for both MILLING machine and LATHE machine.






FREE #2 - Free Upgrade to Shipping by FEDEX !!


Why wait 9~14 working days ? You can have your DRO fly to you in 2~5 working days. Get your DRO faster, with point-to-point tracking and hassle-free clearance.


FREE ONLY for this Promotion !!!




---------------------------------------------------------------------------------------------------------------------------------





WHAT ARE YOU GETTING ?

We put them in Photo, so you can be sure you get the BEST !! NO DOUBTS !!

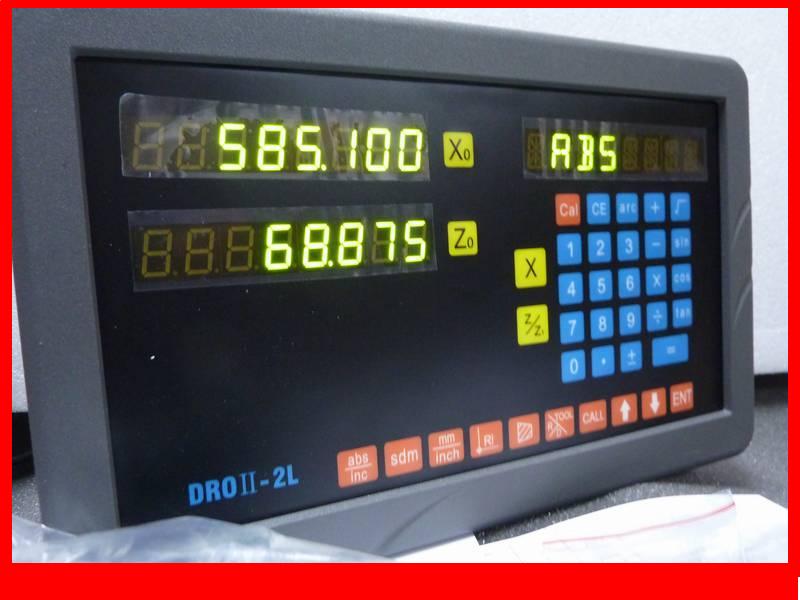

1) mTECH DRO2L FOR LATHE MACHINE

      2) Mounting Arm




3) Scale installation manual



 4) English DRO Setup and Operation manual




5) Screws, ground cable and DRO Dust Cover



 6) Power Cable




7) 2 piece of mTECH High Precision Glass scale with protective cover
(You can choose your preferred measuring length from 50mm ~ 920mm (2"~36"))
These scales has double-seal rubber lips against metal chips and coolant.



 8) All necessary mounting bracket, screws, cable ties, blocks, shim, cable holder
(Everything is included, so you do not waste time)






Ex-Stock , Immediate Shipping... Why Wait !!


Why buy from TheDROStore.com ??
We consistently provide good product at a good price and  exceed customer expectations!!


2. WHAT LENGHT OF GLASS SCALE ARE AVAILABLE ??

Glass Scales are available in these travel/measuring length:
Metric: 50, 120, 170, 220, 270, 320, 370, 420, 470, 520, 620, 750, 820, 920mm.
Inches: 2, 4.7, 6.7, 8.7, 10.6, 12.6, 14.6, 16.5, 18.5, 20.5, 24.5, 29.5, 32.3, 36.2inches.

(Physical Length/Overall Length is 142 mm (5.6") longer)

You can  CHOOSE ANY 2 PIECE OF GLASS SCALE FROM THE ABOVE.


To know what travel length scale will suits yout machine, you can visit my blog:
http://mtechdro.blogspot.com/2007/08/faq-what-scale-length-will-suit-my.html


Here are some common scales for these standard machine:

Mill Size Scale Travel Scale Overall Length
8 x 36" 12.6 x 30"  18 x 35"
9 x 42" 14.6 x 30"  20 x 35"
9 x 49" 14.6 x 36"  20 x 41.8"
10 x 54" 16.5 x 40"  22 x 45.6"
Lathe Size Scale Travel Scale Overall Length
12 x 24" 6.7 x 30" 12 x 35"
12 x 36" 8.7 x 40" 14 x 45.6"
13 x 40" 8.7 x 40" 14 x 45.6"
14 x 40" 10.6 x 40" 16 x 45.6"
16 x 40" 10.6 x 40" 16 x 45.6"
16 x 60" 10.6 x 60" 16 x 65.6"
18 x 60" 12.6 x 60" 18 x 65.6"

3. WHAT ARE THE PHYSICAL FEATURES OF THE DIGITAL READOUT ??

~Membrane Seal diaphragm touch keys (Water/Coolant/Dust Proof)
~Die-Cast Aluminum Casing
~3x  7-Segment Green LED Display Windows

4. WHAT ARE THE ELECTRICAL FEATURES OF THE DIGITAL READOUT ??

~Power Supply Voltage: AC 100V ~  230 V,  50 Hz ~ 60 Hz  (Automatic Detection)
~Power Consumption: 25VA
~Input signal: TTL square wave.
~Frequency multiplication: 4x.
~Input signal frequency: >100KHz.

5. WHAT ARE THE OPERATION  FEATURES OF THE DIGITAL READOUT ??

 DRO-2L (LATHE DRO)
~Absolute/Incremental
~M/I: MM/Inches conversion
~Radius/Diameter selection
~Linear error compensation function
~Machine Reference
~9 Tool compensation
~200 work piece datum



6. WHAT ARE THE FEATURES OF THE HIGH PRECISION GLASS SCALE ??

~High Precision Etched glass
~Resolution : 5um (0.005mm).0002 inch
~Signal : TTL SQUARE WAVE
~Grating pitch: 0.02mm (50LP/min)
~Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
~Reference marks at interval of 50mm
~Response Speed: 60m/min or 40ins/sec
~Cable length: Armoured 3 Meter (about 9 feet)

THESE ARE HIGH QUALITY SCALES THAT HAVE BEEN CHECKED BY LASER !!!


Drawing of the Scales:

Slim Scales (Model JCXF ) - Normally used for Lathe Cross-slide ( measure up to 370mm, 14.5")


Standard Scales (Model JCXE) - Used for Z-axis on Lathe and Milling machine ( measure up to 1020mm, 40.1")

Long Scales (Model JCXG) - Used for Big machine with extended length ( measure up to 6000mm, 236")

7. WHAT ARE THE PAYMENT OPTIONS ??

~ Paypal is preferred.
~ Credit cards through Paypal.
~ Bank transfer
~ Telegraphic Transfer/Remittances




8. WHAT ARE THE SHIPPING / HANDLING OPTIONS ??

~Door-to-Door By Air Parcel
~Shipping for USA, CANADA, UK, AUSTRALIA, NEW ZEALAND is FREE  US$125  ( 9 to 11 Days)
~For Other location, please email me for shipping/handling cost.

OPTIONAL:



Why wait 9~14 working days ? You can have your DRO fly to you in 2~5 working days. Get your DRO faster, with point-to-point tracking and hassle-free clearance.
JUST ADD USD20.

FREE ONLY for THIS Promotion !!!



9. WHAT WARRANTY IS GIVEN FOR THIS SYSTEM ??

~1 year INTERNATIONAL WARRANTY


10. REFUNDS

We are so SURE you will like it and improve your work efficiency and accuracy that we gladly offer you 30 days NO QUESTIONS ASKED return privilege.

This is a 100% refund. You are only responsible for shipping back the package.




11. Sample Photos of mTECH DRO installation  (Click to see more photos at my Blog)

RF31 milling machine by Al Betzwieser (USA) Harbor Freight HF 40576 14x40 lathe. by Ed Boysun (USA) Birmingham lathe from John Stanke (USA)




Bridgeport Milling Machine from David Ralston (UK) Harrison L5A (1961) from Ross Crymble (UK) Sieg X3 Mill - Jeffrey (UK)


mTECH Scales used wit Fagor NV DRO Bridgeport milling machine - Aaron Nelson (USA) Harbor Freight Milling machine : ZAY7032G  - Mike Deines (USA)



12. WHAT OTHER BUYER SAYS ABOUT US:



Buyer : Charles Smyder (USA)  (Click to see his DRO installation in the blog)
         " the free E-book was invaluable for mounting hints and especially noteworthy for the proper scale alignment proceedures. The trouble free, neat & tidy installation was due wholly to the the extra thought that you put into creating the complete DRO package. Just as your ad stated, there was nothing     else to buy "

Buyer: efatec (130) (Germany)
        "Superschnell und super Ware. Vielen Dank und immer gern wieder."


Buyer:  floritasonia ( 57 ) (Italy)
        "Ok ottimo molto veloce.Porodotto di qualità."

Buyer: toch185 ( 16) (Swiss)
        "shipment very very fast , thaks a lot"

Buyer: protman16 ( 18 ) (CANADA)
        "Excellent communication, very fast shipping and great customer service!!!"



For more information and machine installation example of our customer, you can check it out:
The Number #1 blog for DRO installation example

http://mtechdro.blogspot.com/

RETURN POLICY
=============
We are so SURE you will like it and improve your work efficiency and accuracy that we gladly offer you 30 days NO QUESTIONS ASKED return privilege.

This is a 100% refund
You are ONLY responsible for the Packaging and Shipping costs.


CHECKOUT INSTRUCTION
====================
Please advice:
1) What is the measuring length of the scales?
2) Your shipping address
3) Your phone no.

After you purchase we will email you to ask for your required scale length before shipping.
We believe in personal touch to give you peace of mind.
